ANALOG MONITOR

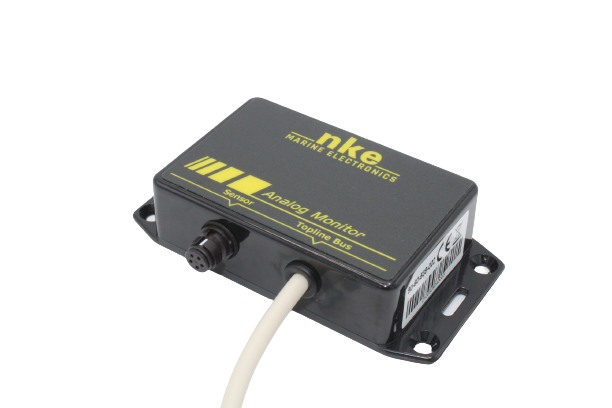

Analog Monitor by nke

Create and publish on the Topline Bus your own channels.

This Interface allows you to create and publish on the Topline Bus the data of any third party sensor(s) of analog voltage type (ex: mast angle sensor, keel angle sensor, tank gauges…).

SPECIFICATIONS

Power supply

10 to 16VDC

Consumption

22mA without lighting and 90mA with lighting

Waterproofing

IP67

Weight

400g including cable

Cable bus

Ø 5.0 ± 0.3 - weight: 34 g/m

Dimensions

height : 97mm; width : 147mm; thickness : 25mm

Operating temperature

-10°C à +50°C

Storage temperature

-20°C à +60°C

Horizontal viewing angle

> 120°

Vertical viewing angle

> 90°

Character height

18 mm for the channel, and 6 mm for the title and unit

FEATURES

  • For standard sensors (mast angle sensor, keel angle sensor, tank gauges), display of the sensor data on all Topline displays.
  • For other custom sensors, display of the data on the multigraphics on a configurable dynamic channel: choice of the unit format and label. Display in analog or digital form..
  • Up to 8 customizable channels
  • Customized configuration of the interface by nke.
